Toshiba's MKxx59GSXP series of 5,400 RPM hard disk drives is a long data sector counterpart to the MKxx76GSX line-up. Both product series build upon the maturity of the Toshiba 320GB* per-platter architecture to offer the same big storage capacities with a technology boost to enhance quality and span 160 to 640GB. The MKxx59GSXP series uses Advanced Format (AF) technology where data is stored on the media in 4,096 bytes per sector increments. Compatibility with legacy, 512 bytes per sector applications is maintained through AF emulation techniques, called 512e.

The large storage capacities, ruggedness and cool operation of the MKxx59GSXP models are well-suited for mobile and compact, stationary applications. Their massive storage capacity and energy efficiency also make the MKxx59GSXP line an attractive, space-saving alternative to desktop hard drives. Power consumption can be reduced by more than 80% over like-capacity 3.5-inch hard disk drives.

While reducing or eliminating the use of certain toxic, hazardous or controversial chemicals and materials in the drive, the MKxx59GSXP series is ideal for Windows® 7 and Mac® OS-based notebook, all-in-one and EnergyStar® desktop PCs, external storage devices and other computing.

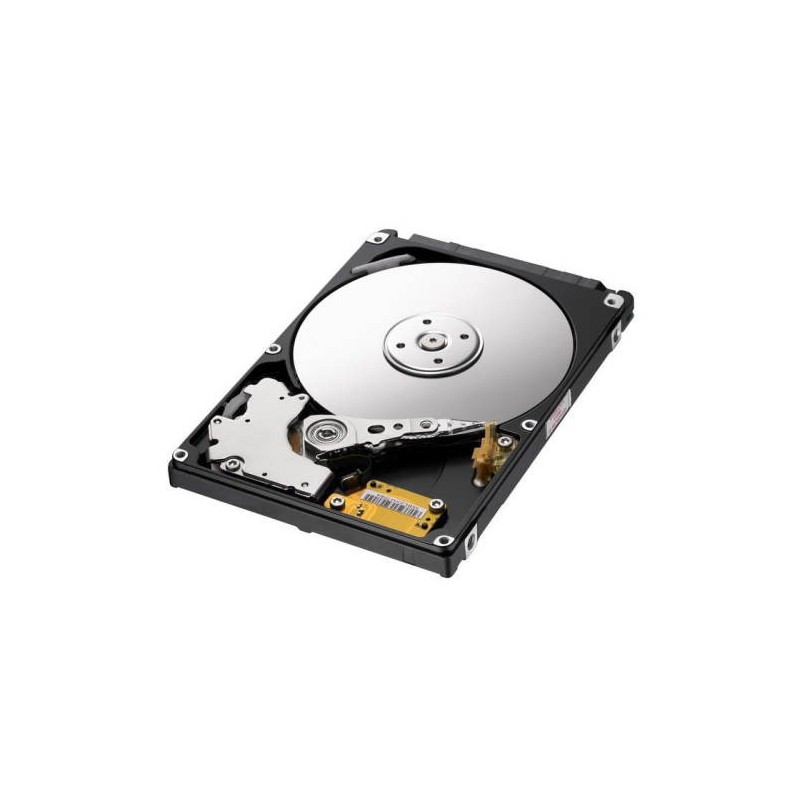

Toshiba MK5059GSXP. HDD size: 2.5", HDD capacity: 500 GB, HDD speed: 5400 RPM

HDD size

2.5"

HDD capacity

500 GB

HDD speed

5400 RPM

Interface

SATA,Serial ATA

Storage drive buffer size

8 MB

Track to track seek time

2 ms

Average seek time

12 ms

Average latency

5.55 ms

Mean time between failures (MTBF)

600000 h

Power consumption (standby)

0.18 W

Power consumption (read)

1.5 W

Power consumption (write)

1.5 W

Power consumption (idle)

0.55 W

Operating voltage

5 V

Operating temperature (T-T)

5 - 55 °C

Storage temperature (T-T)

-40 - 60 °C

Operating vibration

1 G

Non-operating vibration

5 G

Operating shock

400 G

Non-operating shock

900 G

Width

69.8 mm

Height

9.5 mm

Depth

100 mm

Weight

102 g

Internal

Y
