Toshiba Storage Device Division offers a line of 5,400 RPM 2.5-inch HDDs in a new slim design optimized for industry-leading storage applications. The latest HDD series, MQ01ABDxxx, provides a wide capacity range from 250 GB to 1TB in a 9.5-millimeter-high design with only maximum 2 platters.
The advanced MQ01ABDxxx targets markets such as portable multimedia and gaming notebooks, mobile workstations and other capacity-hungry applications like external HDDs. In addition, the drives also feature very good power efficiency value of 0.00055 for the 1TB model. Due to the “Silent-Seek” technology featured in these drives, the HDDs are extremely quiet: Ultra-silent single-platter drives boast acoustic specifications of 19dBA (seek) and 17dBA (idle) making them almost indistinguishable to the human hear.
With its compact size and best-in class specifications, the SATA MQ01ABDxxx series is the perfect choice for use in devices where a combination of sleek form factor and high capacity capabilities are essential.
As with all Toshiba HDDs, the complete series is halogen-free and RoHS compatible, therefore, exceptionally environmentally friendly.

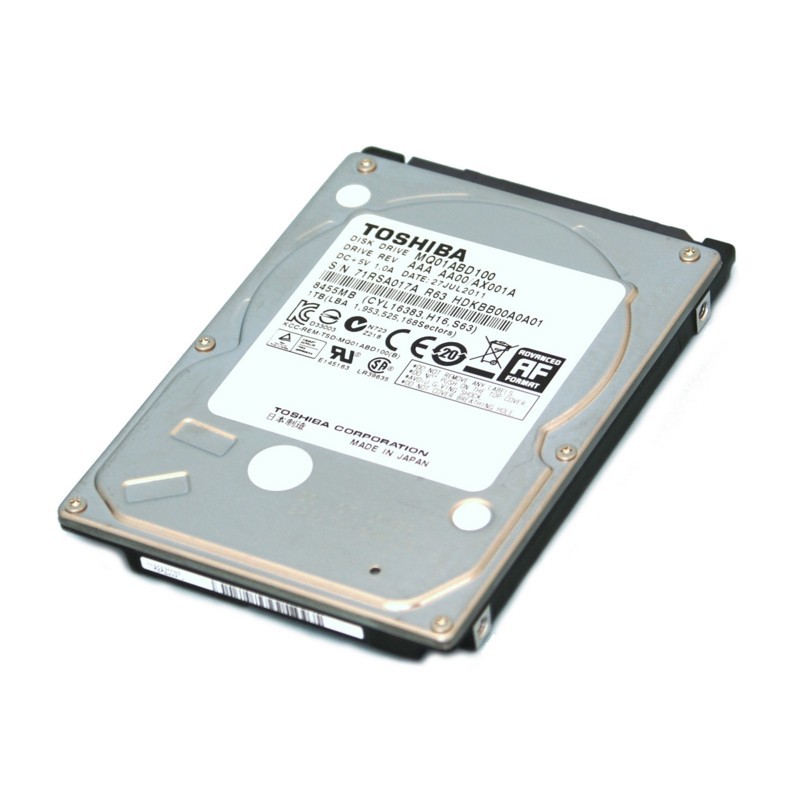

Toshiba 1TB 2.5''. HDD size: 2.5", HDD capacity: 1000 GB, HDD speed: 5400 RPM

HDD size

2.5"

HDD capacity

1000 GB

HDD speed

5400 RPM

Interface

Serial ATA

Storage drive buffer size

8 MB

HDD number of heads

4

Track to track seek time

2 ms

Average seek time

12 ms

SMART technology

Y

Bytes per sector

512

Certification

RoHS

Power consumption (typical)

4.5 W

Power consumption (standby)

0.18 W

Power consumption (read)

1.5 W

Power consumption (write)

1.5 W

Operating voltage

5 V

Operating temperature (T-T)

5 - 55 °C

Storage temperature (T-T)

-40 - 65 °C

Operating vibration

1 G

Non-operating vibration

5 G

Operating altitude

-300 - 3000 m

Non-operating altitude

-300 - 12000 m

Operating shock

400 G

Non-operating shock

900 G

Width

69.8 mm

Height

9.5 mm

Depth

100 mm

Weight

117 g

Seek time

22 ms

Product colour

Silver

Internal

Y

Data transfer rate

3 Gbit/s

Acoustic pressure emissions

24 dB
